This demo showcases how to use the SafetyNode.

​
Run the Template

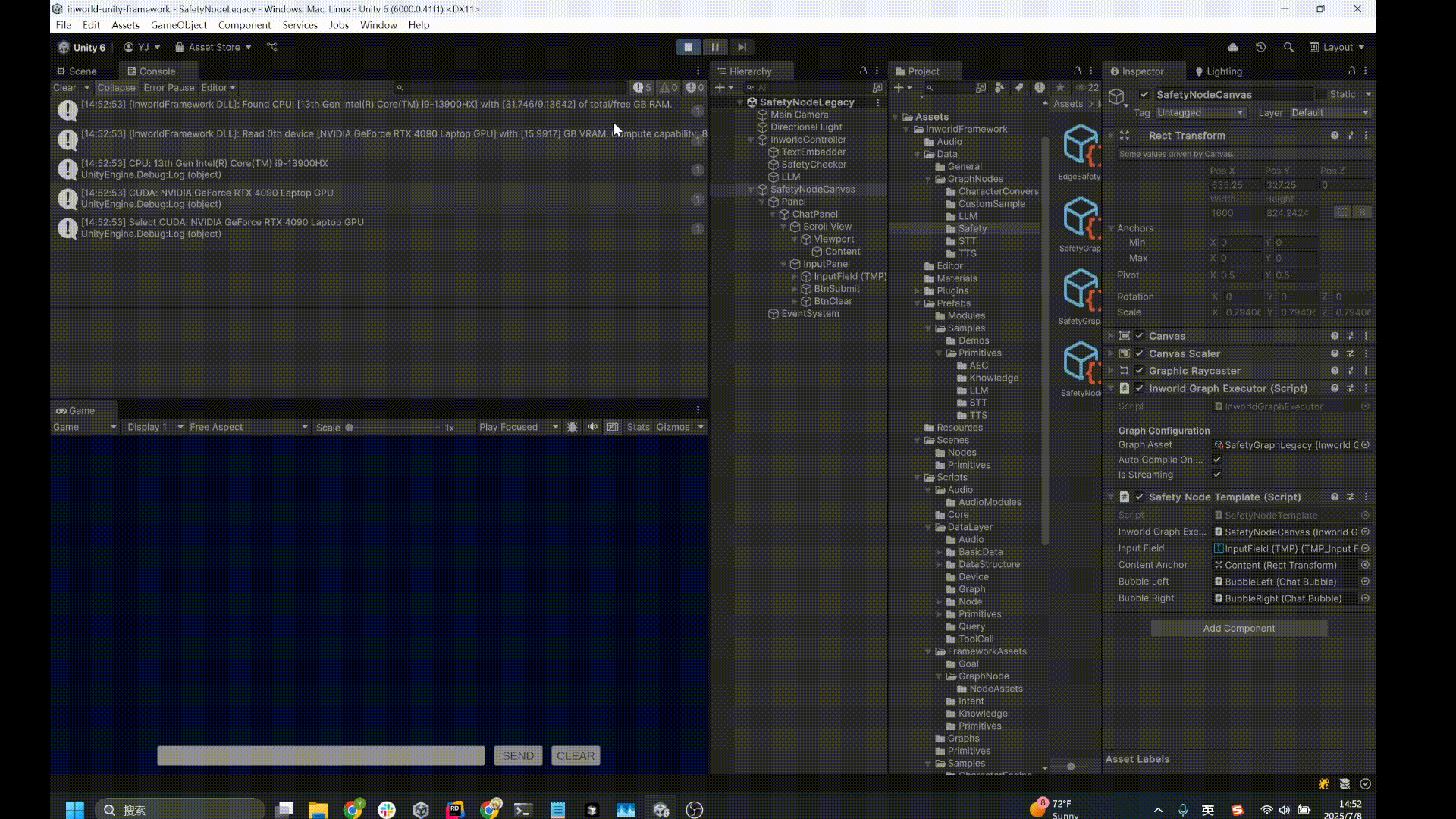

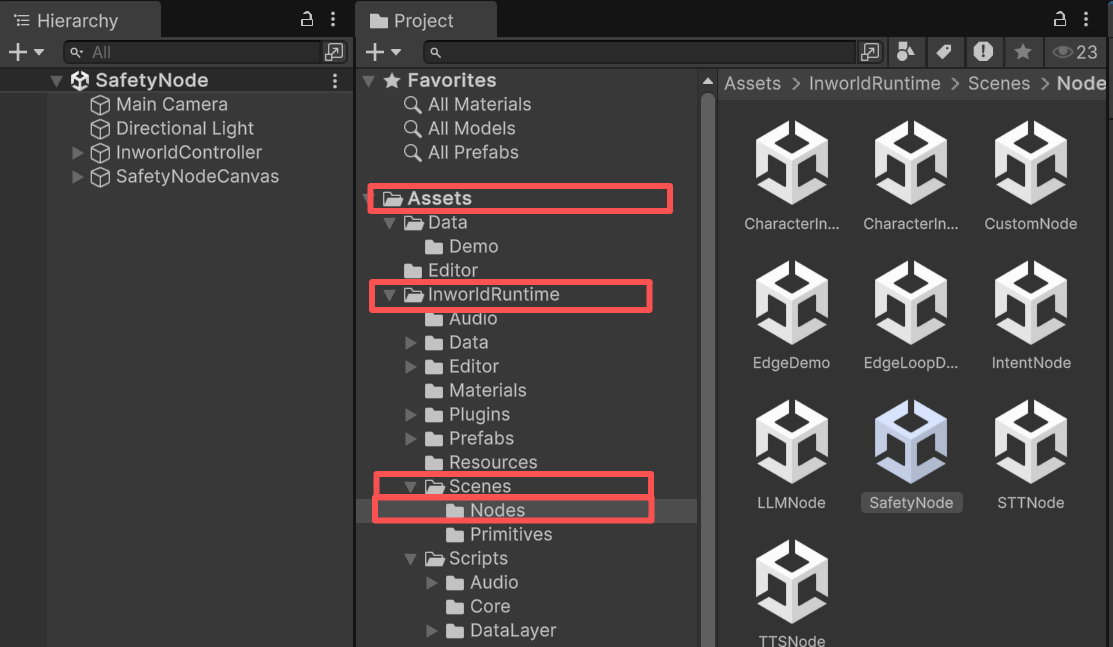

  1. Go to Assets/InworldRuntime/Scenes/Nodes and play the SafetyNode scene. SafetyNode00
  2. Once the graph is compiled, enter text.
  3. The system compares the input against the safety word lists and returns a similarity score (0 = lowest, 1 = highest).
  4. If the score exceeds the threshold, the input is marked unsafe.
Safety

​
Understanding the Graph

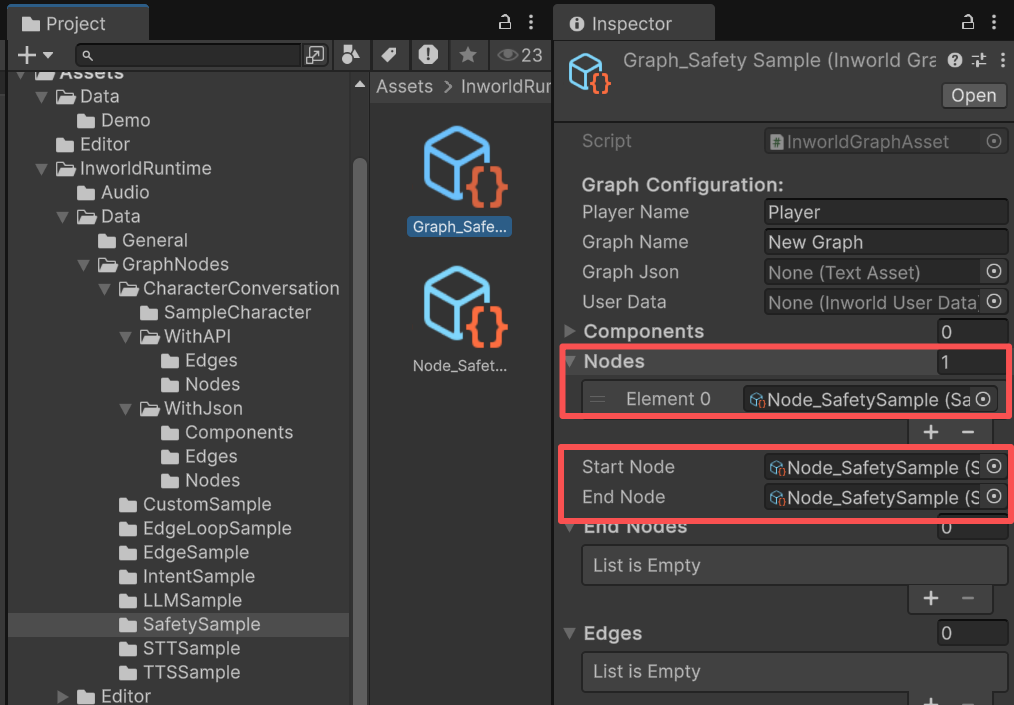

SafetyNodeCanvas contains an InworldGraphExecutor whose graph asset includes only a single SafetyNode. The graph is very simple. It contains a single node, SafetyNode, with no edges. SafetyNode is both the StartNode and the EndNode. SafetyNode02

​
SafetyData

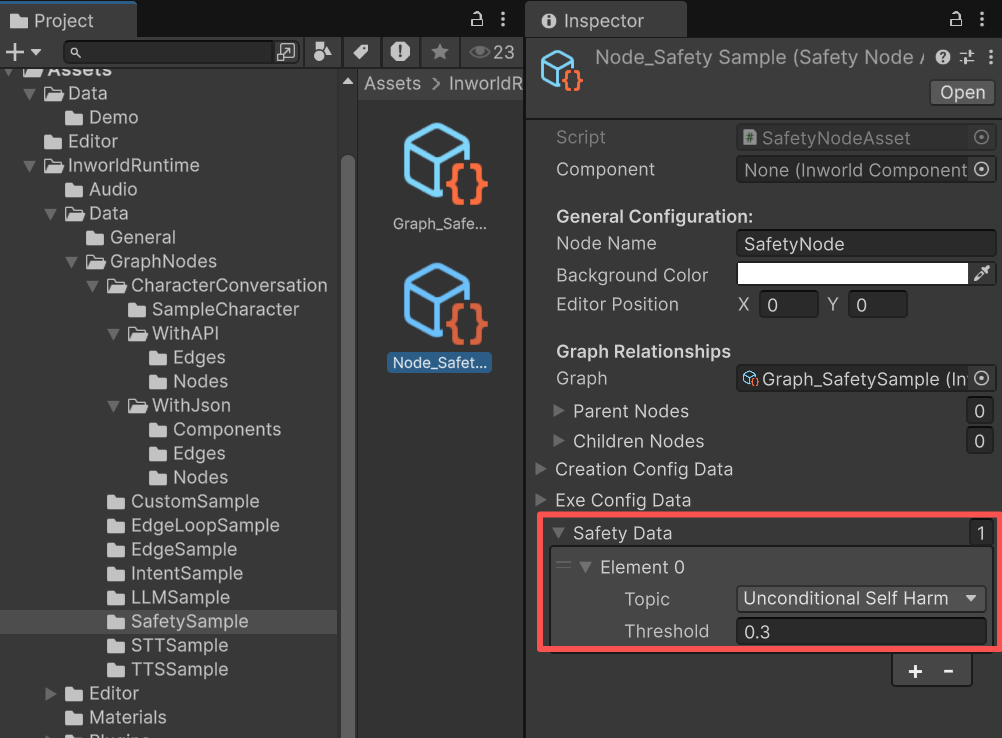

The SafetyData is defined directly within the SafetyNodeAsset. SafetyNode02 You can select multiple topics and configure a threshold for each detection. Higher thresholds are more permissive (1 = almost everything is considered safe). Lower thresholds are stricter (0 = almost everything is considered unsafe).

​
InworldController

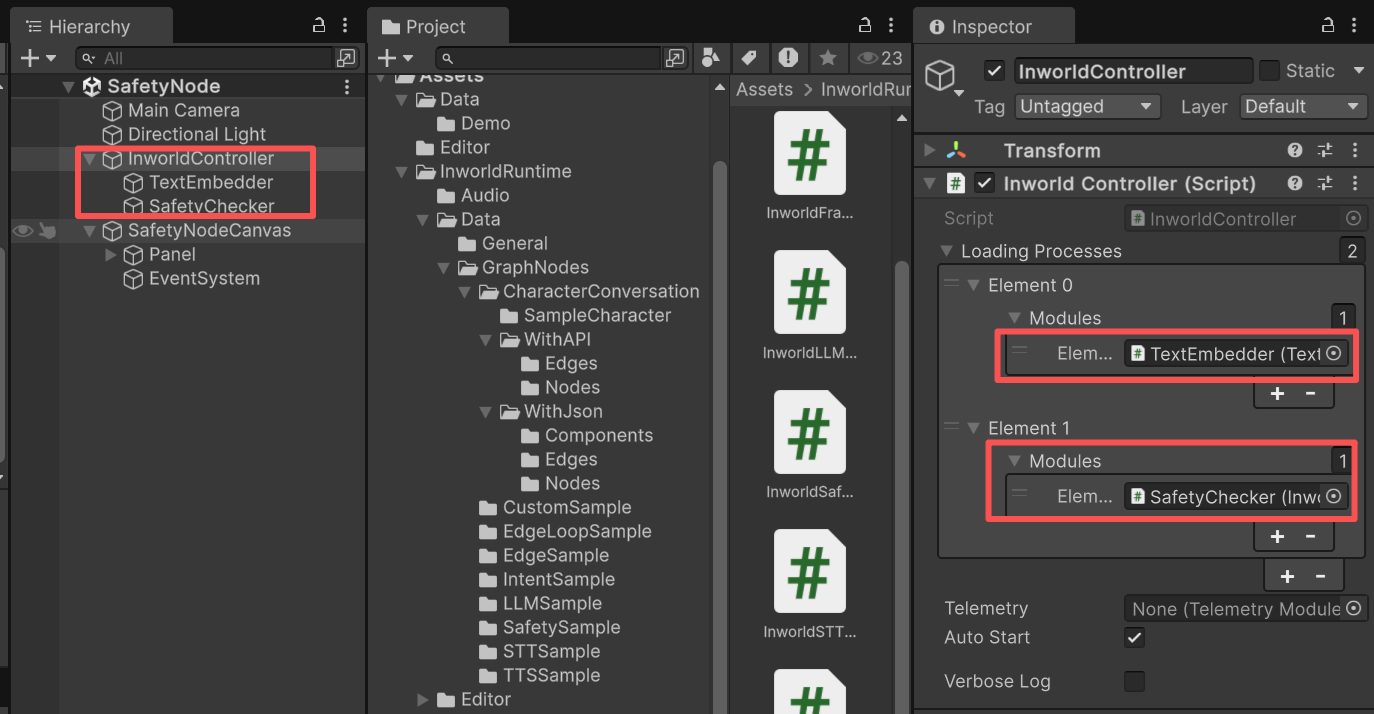

InworldController includes 2 primitive modules: TextEmbedder and SafetyChecker. SafetyNode02 This is because SafetyNode requires both the TextEmbedder interface and the SafetyChecker configuration during CreateRuntime(). The safety module also depends on TextEmbedderModule being initialized first.
SafetyNodeAsset.cs
public override NodeCreationConfig GetNodeCreationConfig()
{
    SafetyCheckerNodeCreationConfig nodeCreationCfg = new SafetyCheckerNodeCreationConfig();
    nodeCreationCfg.SafetyConfig = InworldController.Safety.CreationConfig; // <== This Requires SafetyCheckerInterface.
    nodeCreationCfg.EmbedderComponentID = ComponentID;
    m_CreationConfig = nodeCreationCfg;
    return m_CreationConfig;
}

public override bool CreateRuntime(InworldGraphAsset graphAsset)
{
    m_Graph = graphAsset;
    InworldSafetyModule safety = InworldController.Safety;
    if (!safety)
        return false;
    safety.SetupSafetyThreshold(m_SafetyData);

    ComponentStore componentStore = new ComponentStore();
    componentStore.AddTextEmbedderInterface(NodeName, InworldController.TextEmbedder.Interface as TextEmbedderInterface);
    InworldCreationContext creationContext = new InworldCreationContext(componentStore);
    SafetyCheckerNodeCreationConfig creationCfg = GetNodeCreationConfig() as SafetyCheckerNodeCreationConfig;
    SafetyCheckerNodeExecutionConfig executionCfg = GetNodeExecutionConfig() as SafetyCheckerNodeExecutionConfig;
    Runtime = new SafetyCheckerNode(NodeName, creationContext, creationCfg, executionCfg);
    return Runtime?.IsValid ?? false;
}

​
Workflow

  1. When the game starts, InworldController initializes TextEmbedderModule, which creates the TextEmbedderInterface.
  2. Next, SafetyChecker initializes InworldSafetyModule.
  3. Then InworldGraphExecutor initializes its graph asset by calling each component’s CreateRuntime(). In this case, SafetyNode.CreateRuntime() is called with both the TextEmbedderInterface and the SafetyChecker configuration as input. After that, the graph calls Compile() and returns the executor handle.
  4. After compilation, the OnGraphCompiled event is invoked. In this demo, SafetyNodeTemplate subscribes to it and enables the UI components. Users can then interact with the graph system.
SafetyNodeTemplate.cs
protected override void OnGraphCompiled(InworldGraphAsset obj)
{
    foreach (InworldUIElement element in m_UIElements)
        element.Interactable = true;

}
  1. After the UI is initialized, pressing Enter or the SEND button sends the input text to the graph.
  2. Calling ExecuteGraphAsync() eventually produces a result and invokes OnGraphResult(), which SafetyNodeTemplate subscribes to in order to receive the data.
SafetyNodeTemplate.cs
protected override void OnGraphResult(InworldBaseData output)
{
    SafetyResult safetyResult = new SafetyResult(output);
    if (safetyResult.IsValid)
        DisplaySafety(safetyResult);
}
