Character Interaction Node Json Demo

A demo that uses all Primitive modules and behaves the same as the Character Interaction Demo. That demo compiles by calling the API directly, while this one creates the runtime by supplying a JSON to CreateRuntime. A well‑formed JSON can speed up compilation, and the JSON file can be reused across other platforms such as Unreal and Node.js.

Creating the runtime from JSON is still experimental.Behavior may change at any time, and JSON generated by the Graph View Editor may encounter various issues.

Run the Template

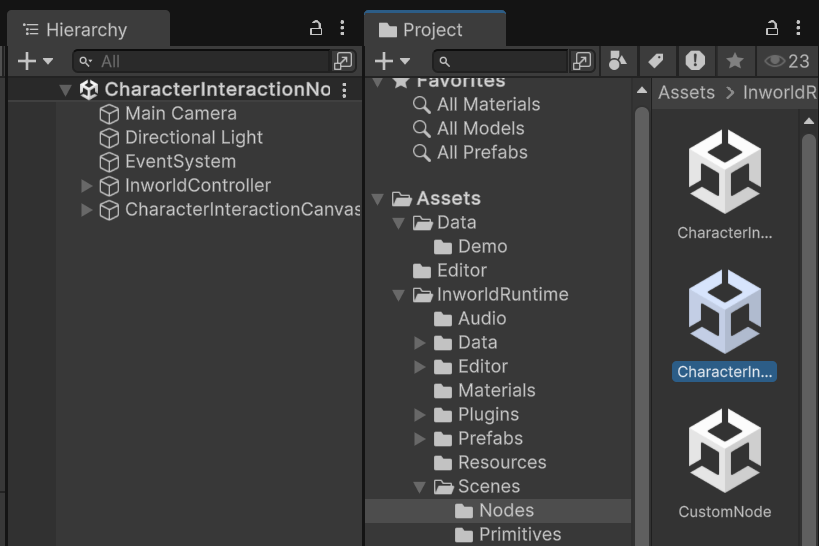

Go to Assets/InworldRuntime/Scenes/Nodes and play the CharacterInteractionNodeWithJson scene.
After the scene loads, you can enter text and press Enter or click the SEND button to submit.
You can also hold the Record button to record audio, then release it to send.
All behavior should be exactly the same as the Character Interaction Demo.

Understanding the Graph

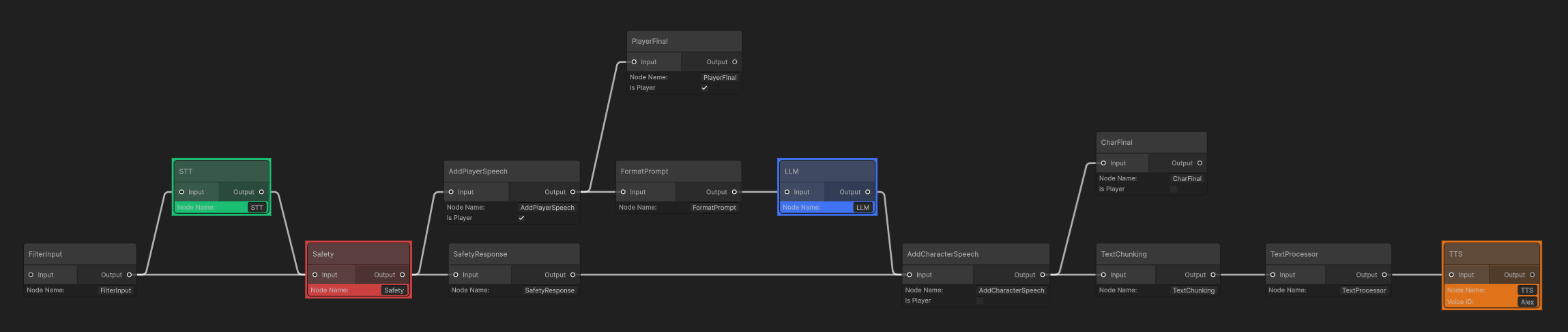

The graph should be exactly the same as the Character Interaction Demo.

JSON structure

A valid JSON contains the following sections: schema_version, components, and main. In main, provide the id, then list nodes and edges, and finally define start_nodes and end_nodes.

unity_character_engine.json

{
  "schema_version": "1.0.0",
  "components": [
    ...
    {
      "id": "stt_component",
      "type": "STTInterface",
      "creation_config": {
        "type": "LocalSTTConfig",
        "properties": {
          "model_path": "{{STT_MODEL_PATH}}",
          "device": {
            "type": "CUDA",
            "index": -1,
            "info": {
              "name": "",
              "timestamp": 0,
              "free_memory_bytes": 0,
              "total_memory_bytes": 0
            }
          },
          "default_config": {}
        }
      }
    },
    ...
    {
      "id": "text_edge",
      "type": "TextEdge"
    },
    ...
  ],
  "main": {
    "id": "main_graph",
      "nodes": [
        {
          "id": "FilterInput",
          "type": "FilterInputNode"
        },
        {
          "id": "Safety",
          "type": "SafetyCheckerNode",
          "creation_config": {
            "type": "SafetyCheckerNodeCreationConfig",
            "properties": {
              "embedder_component_id": "bge_embedder_component",
              "safety_config": {
                "model_weights_path": "{{SAFETY_MODEL_PATH}}"
              }
            }
          },
          "execution_config": {
            "type": "SafetyCheckerNodeExecutionConfig",
            "properties": {
            }
          }
        },
        ...
      ],
      "edges": [
        {
          "from_node": "FilterInput",
          "to_node": "STT",
          "condition_id": "audio_edge",
          "optional": true
        },
        ...
      ],
      "start_nodes": [
        "FilterInput"
      ],
      "end_nodes": [
        "TTS",
        "CharFinal",
        "PlayerFinal"
      ]
  }
}

schema_version

For now, use 1.0.0.

components

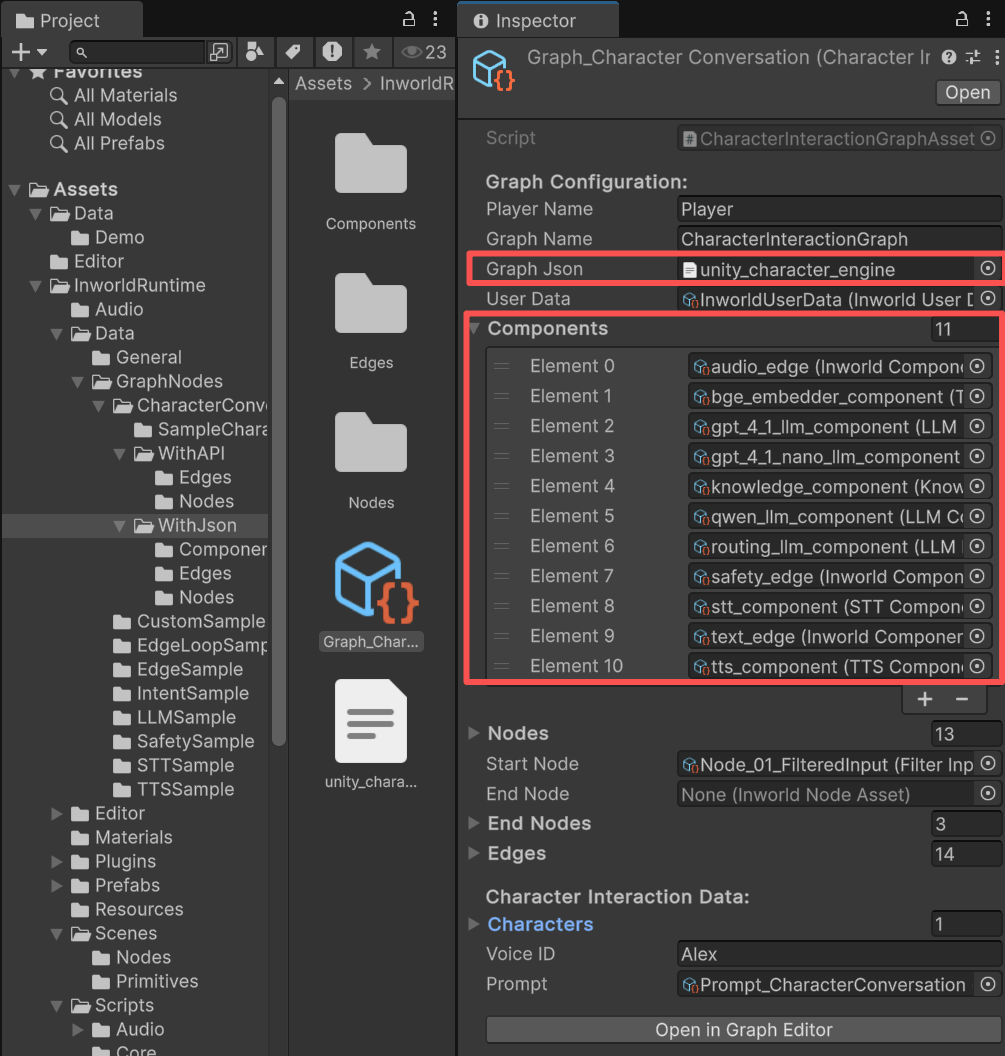

The only difference between the JSON-based approach and the pure API approach is that this ScriptableObject contains a list of components. This effectively describes the JSON. These components are also ScriptableObjects; they have no effect at Unity AI Runtime. Their sole purpose is to generate the JSON, because a valid Inworld JSON must include the components field.

unity_character_engine.json

{
  "schema_version": "1.0.0",
  "components": [
    {
      "id": "qwen_llm_component",
      "type": "LLMInterface",
      "creation_config": {
        "type": "RemoteLLMConfig",
        "properties": {
          "provider": "inworld",
          "model_name": "Qwen/Qwen2-72B-Instruct",
          "api_key": "{{INWORLD_API_KEY}}",
          "default_config": {
            "max_new_tokens": 160,
            "max_prompt_length": 8000,
            "temperature": 0.7,
            "top_p": 0.95,
            "repetition_penalty": 1.0,
            "frequency_penalty": 0.0,
            "presence_penalty": 0.0,
            "stop_sequences": [
              "\n\n"
            ]
          }
        }
      }
    },
    ...
  ]
}

When using the Graph View Editor, whenever you create a node, if it is an Inworld node (LLM, TTS, etc.), a default component will be created for you if one doesn’t already exist.

Custom edges and components

All custom edges are also components. When writing JSON, explicitly declare them inside components.

unity_character_engine.json

{
  "schema_version": "1.0.0",
  "components": [
    {
      "id": "qwen_llm_component",
      "type": "LLMInterface",
      "creation_config": {
        ...
      }
    },
    ...
    {
      "id": "text_edge",
      "type": "TextEdge"
    },
    {
      "id": "audio_edge",
      "type": "AudioEdge"
    },
    {
      "id": "safety_edge",
      "type": "SafetyEdge"
    }
  ],
  ...
}

Relationship between nodes and components

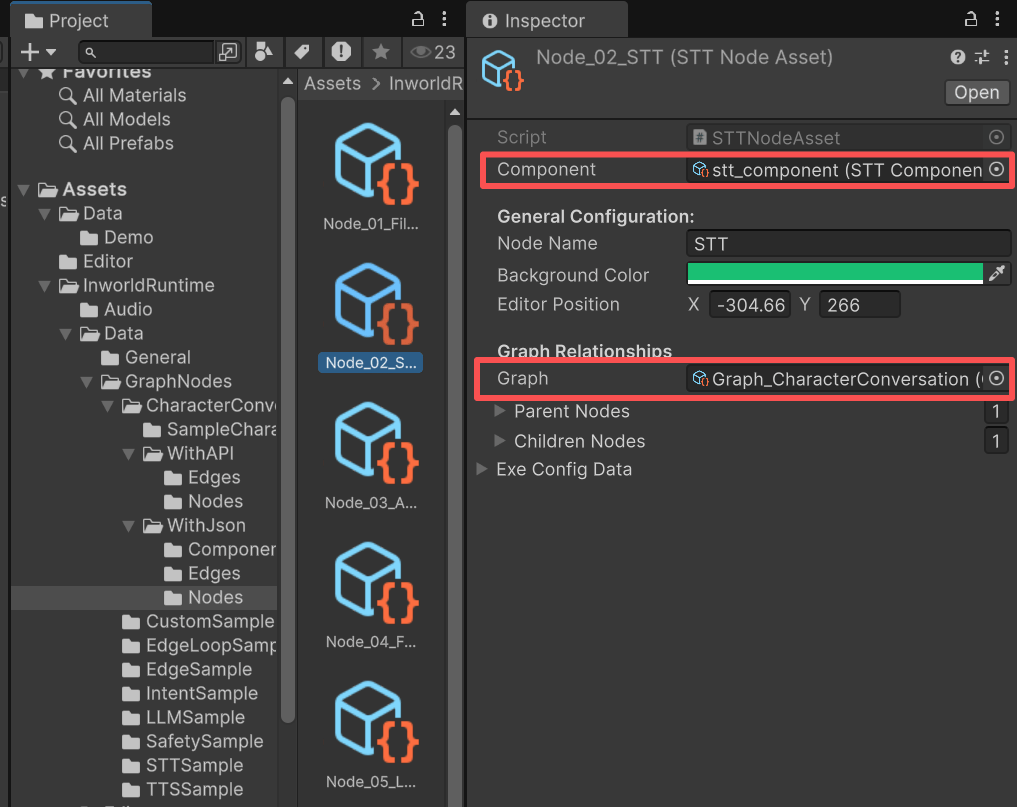

When creating the runtime from JSON, the component field in the NodeAsset (if present) must be filled in.

In the nodes section, the id inside properties must match the component id defined above.

{
  "schema_version": "1.0.0",
  "components": [
    {
      "id": "stt_component", // <=== This is Component ID!
      "type": "STTInterface",
      "creation_config": {
        "type": "LocalSTTConfig",
        "properties": {
          "model_path": "{{STT_MODEL_PATH}}",
          "device": {
            "type": "CUDA",
            "index": -1,
            "info": {
              "name": "",
              "timestamp": 0,
              "free_memory_bytes": 0,
              "total_memory_bytes": 0
            }
          },
          "default_config": {}
        }
      }
    },
    ...
  ]
  "main": {
    "id": "main_graph",
      "nodes": [
        {
          "id": "FilterInput",
          "type": "FilterInputNode"
        },
        ...
        {
          "id": "STT",
          "type": "STTNode",
          "execution_config": {
            "type": "STTNodeExecutionConfig",
            "properties": {
              "stt_component_id": "stt_component" // <=== Here need to be the same!
            }
          }
        },
      ]
  }
}

main

The entire graph—its nodes, edges, start_nodes, and end_nodes—must be defined here.

node

For user-defined nodes, provide the name of the C# class, for example

{
    "id": "FilterInput",
    "type": "FilterInputNode"
},

This corresponds to the C# class’s NodeTypeName.

FilterInputNodeAsset.cs

public class FilterInputNodeAsset : CustomNodeAsset
{
    public override string NodeTypeName => "FilterInputNode";
    ...
}

For Inworld nodes, formats vary; follow the sample JSON in this demo.

edge

For edges, ensure the ids match.

{
    "from_node": "FilterInput",
    "to_node": "STT",
    "condition_id": "audio_edge", //<==
    "optional": true
},

For example, for the edge connecting FilterInputNode to STTNode, the condition_id must match the id defined in components.

{
    "id": "audio_edge", //<== Here.
    "type": "AudioEdge"
},

InworldController

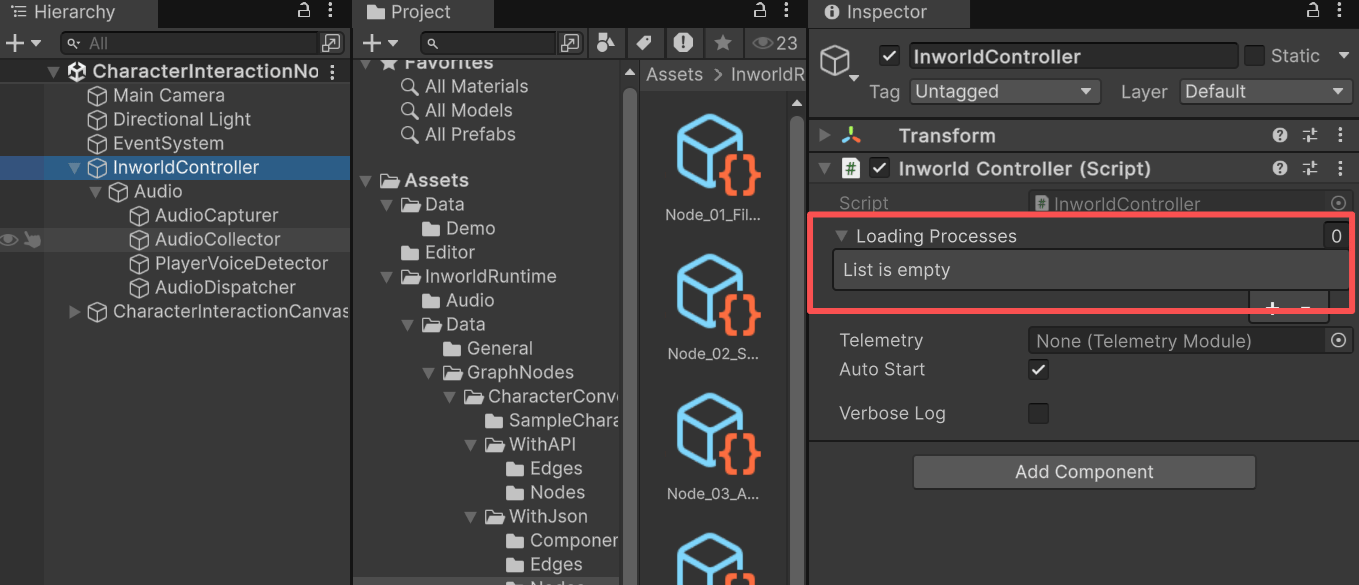

The InworldController only provides the InworldAudioManager for audio output and does not require any Primitive modules.

For details about the AudioManager, see the Speech-to-Text Node Demo

Workflow

When the game starts, InworldController initializes immediately because there are no modules.
Next, InworldGraphExecutor initializes its graph asset by calling each component’s CreateRuntime().
When the graph runs CreateRuntime(), if a JSON file is present it first runs ParseJson(), uses Newtonsoft.Json, and stores all JSON data into dictionaries.

InworldGraphAsset.cs

public bool CreateRuntime()
{
    string graphName = !string.IsNullOrEmpty(m_GraphName) ? m_GraphName : "UnnamedGraph";
    if (!m_GraphJson || string.IsNullOrEmpty(m_GraphJson.text))
        m_RuntimeGraph ??= new InworldGraph(graphName);
    else
        ParseJson(); // <============================================= Here
    if (!CreateNodesRuntime())
        return false;
    if (!CreateEdgesRuntime())
        return false;
    if (!SetupStartNodesRuntime())
        return false;
    if (!SetupEndNodesRuntime())
        return false;
    return true;
}

public void ParseJson()
{
    if (m_ParsedRoot != null || string.IsNullOrEmpty(m_GraphJson?.text))
        return;
    m_ParsedRoot = JObject.Parse(m_GraphJson.text);
    if (!(m_ParsedRoot["main"] is JObject main))
        return;
    m_JsonNodeRegistry ??= new Dictionary<string, bool>();
    if (main["nodes"] is JArray nodes)
    {
        foreach (JToken n in nodes)
        {
            string id = (string)n["id"];
            if (!string.IsNullOrEmpty(id))
                m_JsonNodeRegistry[id] = false;
        }
    }
    m_JsonEdgeRegistry ??= new Dictionary<(string, string), bool>();
    if (main["edges"] is JArray edges)
    {
        foreach (JToken e in edges)
        {
            string fromNode = (string)e["from_node"];
            string toNode = (string)e["to_node"];
            if (!string.IsNullOrEmpty(fromNode) && !string.IsNullOrEmpty(toNode))
                m_JsonEdgeRegistry[(fromNode, toNode)] = false;
        }
    }
}

When each node/edge creates its runtime, it first calls RegisterJson() to apply the values from m_JsonNodeRegistry and m_JsonEdgeRegistry.

If this succeeds, the subsequent CreateRuntime() API calls are skipped.

InworldGraphAsset.cs

public bool CreateNodesRuntime()
{
    foreach (InworldNodeAsset nodeAsset in m_Nodes)
    {
        if (nodeAsset.IsValid)
            continue;
        if (nodeAsset.RegisterJson(this)) // <============= Here
            continue;
        if (m_RuntimeGraph == null)
        {
            Debug.LogError($"[InworldFramework] Creating Runtime Node Failed. Runtime Graph is Null.");
            continue; //return false;
        }
        if (!nodeAsset.CreateRuntime(this))
        {
            Debug.LogError($"[InworldFramework] Creating Runtime for Node: {nodeAsset.NodeName} Type: {nodeAsset.NodeTypeName} failed");
            return false;
        }
        ...
    }
}

public bool RegisterJsonNode(string nodeName)
{
    if (m_JsonNodeRegistry == null || !m_JsonNodeRegistry.ContainsKey(nodeName))
        return false;
    m_JsonNodeRegistry[nodeName] = true;
    return true;
}

During compilation, we call InitializeRegistries() to initialize all Primitive modules in a special way.

This function lives inside the Inworld library and is not fully complete.When called in the Unity Editor, it runs independently of the editor lifecycle; its effects persist even after you stop play mode.To mitigate this, a hard-coded safeguard ensures it is only called once per Unity Editor session.If registries change and you need to call InitializeRegistries() again, please restart the Unity Editor.

After that, run GraphParser.ParseGraph() and pass other user data as needed to produce the CompiledGraph()

InworldGraphAsset.cs

public bool CompileRuntime()
{
    if (m_CompiledGraph == null || !m_CompiledGraph.IsValid)
    {
        if (m_ParsedRoot != null)
        {
            InitializeRegistries();
            ConfigParser parser = new ConfigParser();
            if (!parser.IsValid)
            {
                Debug.LogError("[InworldFramework] Graph compiled Error: Unable to create parser.");
                return false;
            }
            m_CompiledGraph = parser.ParseGraph(m_GraphJson.text, m_UserData?.ToHashMap);
        }

The remaining flow is identical to the Character Interaction Node
